Cooling fan series

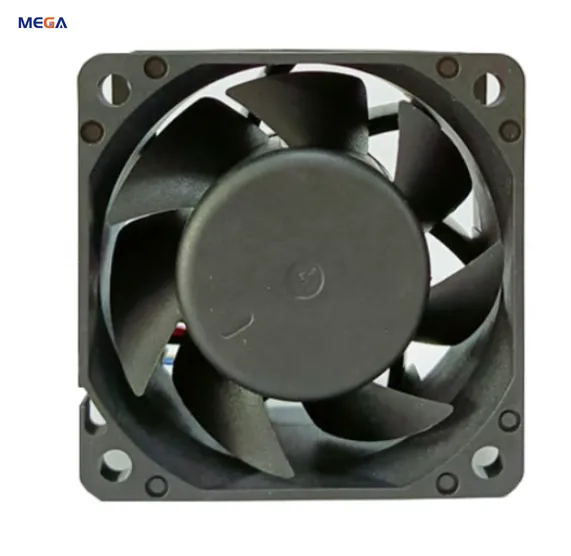

MG7025 High Static Pressure 70 x 70 x 25 mm - A Type

Name: MG7025 High Static Pressure 70 x 70 x 25 mm - A Type
Brand: MEGA Tech
SKU: MG7025

The MG7025 DC axial fan is a 70 x 70 x 25 mm - A Type solution for networking, industrial electronics and equipment enclosures. Select by airflow and static pressure at the installed operating point, then validate the chosen variant with a sample on your own unit.

Request a sample →Request a quote

Selection highlights

Available variants

High Static Pressure up to 40.5 mmH₂O
Pressure-band options: H up to 7.8 mmH₂O, HH up to 40.5 mmH₂O.
Compact 70 x 70 x 25 mm format with 1.68–3.84 W input power
Up to 5,000 RPM and 47 CFM
Noise range 0.248–47.3 dBA
PWM speed control, FG/RD tachometer output, IP rating, lead wire and connector can be reviewed and configured on request; confirm the final configuration before sampling.
MEGA Tech supplies the fan itself — cabinet airflow design, coils and liquid loops remain the system integrator responsibility.
