Cooling fan series

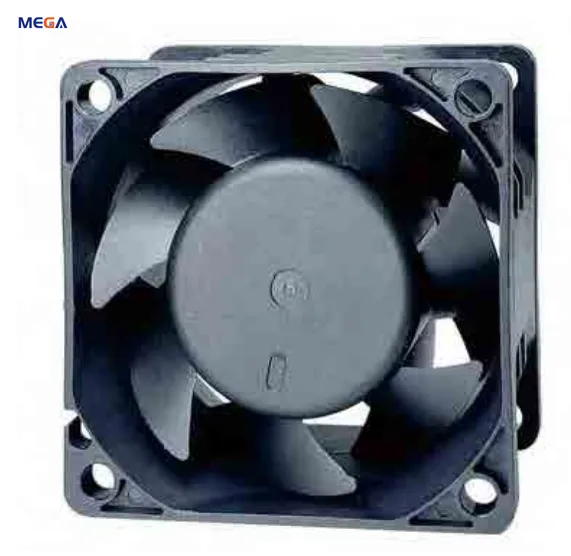

MG6038 High Static Pressure 60 x 60 x 38 mm - A Type

Name: MG6038 High Static Pressure 60 x 60 x 38 mm - A Type
Brand: MEGA Tech
SKU: MG6038

The MG6038 DC axial fan is a 60 x 60 x 38 mm - A Type solution for networking, industrial electronics and equipment enclosures. Select by airflow and static pressure at the installed operating point, then validate the chosen variant with a sample on your own unit.

Request a sample →Request a quote

Selection highlights

Available variants

High Static Pressure up to 32.75 mmH₂O
Pressure-band options: H up to 26.24 mmH₂O, HH up to 32.75 mmH₂O.
Compact 60 x 60 x 38 mm format with 3.12–10.8 W input power
Up to 10,000 RPM and 51.6 CFM
Noise range 48.9–62.2 dBA
PWM speed control, FG/RD tachometer output, IP rating, lead wire and connector can be reviewed and configured on request; confirm the final configuration before sampling.
MEGA Tech supplies the fan itself — cabinet airflow design, coils and liquid loops remain the system integrator responsibility.
