Cooling fan series

MG6015 High Static Pressure 60 x 60 x 15 mm - A Type

The MG6015 DC axial fan is a 60 x 60 x 15 mm - A Type solution for networking, industrial electronics and equipment enclosures. Select by airflow and static pressure at the installed operating point, then validate the chosen variant with a sample on your own unit.

MG6015 High Static Pressure 60 x 60 x 15 mm - A Type
Request a sample →Request a quote

Available variants

MODELS ＆ OPERATING DATA

Values below are loaded from the current catalogue record. Confirm the selected operating point and application before approval.

ModelVoltageRated currentInput powerSpeedAirflowStatic pressureNoise
MG6015L12X12 V DC0.02 A0.2 W25002.24 CFM3.31 mmH₂O24.4 dBA
MG6015L24X24 V DC0.01 A0.2 W25002.24 CFM3.31 mmH₂O24.4 dBA
MG6015M12X12 V DC0.04 A0.4 W30002.78 CFM5.12 mmH₂O29.5 dBA
MG6015M24X24 V DC0.02 A0.48 W30002.78 CFM5.12 mmH₂O29.5 dBA
MG6015H12X12 V DC0.06 A0.7 W35003.16 CFM7.13 mmH₂O33.6 dBA
MG6015H24X24 V DC0.03 A0.7 W35003.16 CFM7.13 mmH₂O33.6 dBA
MG6015HH12X12 V DC0.08 A1 W40003.67 CFM9.72 mmH₂O36.9 dBA
MG6015HH24X24 V DC0.04 A1 W40003.67 CFM9.72 mmH₂O36.9 dBA
MG6015VH12X12 V DC0.1 A1.2 W45004.13 CFM12.7 mmH₂O40.5 dBA
MG6015VH24X24 V DC0.05 A1.2 W45004.13 CFM12.7 mmH₂O40.5 dBA
MG6015HV12X12 V DC0.13 A1.6 W50004.54 CFM16.62 mmH₂O43.5 dBA
MG6015HV24X24 V DC0.07 A1.6 W50004.54 CFM16.62 mmH₂O43.5 dBA

Built to order

CUSTOMIZATION ＆ OPTIONS

MEGA supplies the fan itself; system-level air paths, ducting and cabinet integration remain the responsibility of the system integrator.

Keep selecting

RELATED SERIES

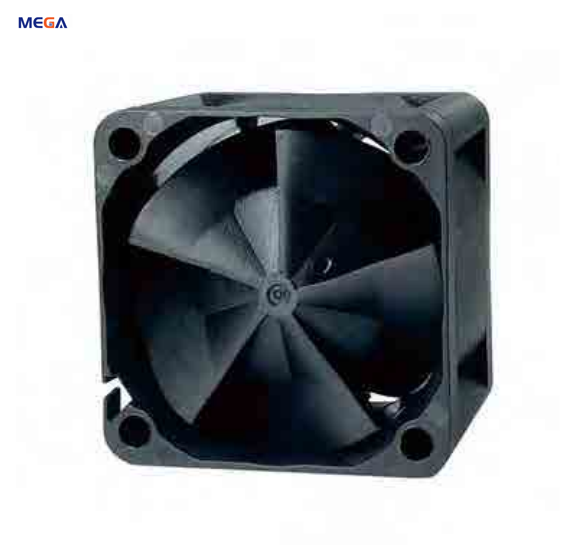

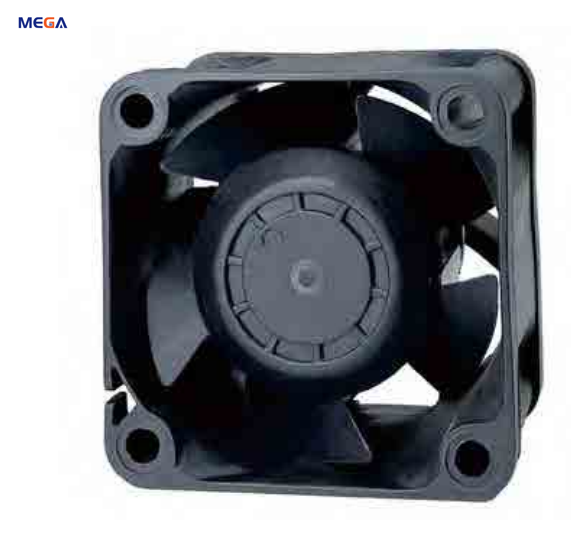

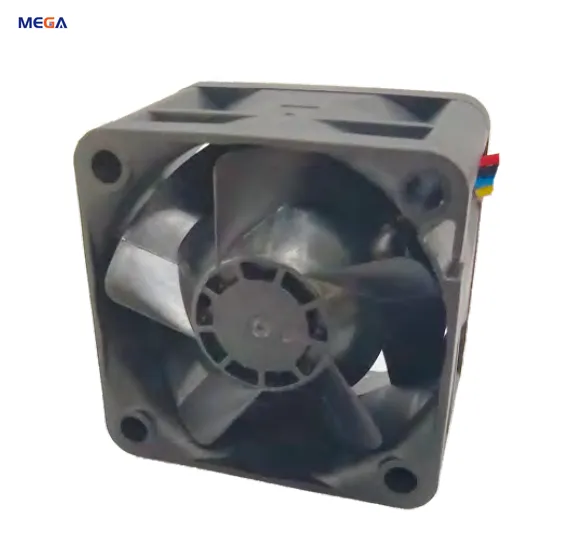

60 x 60 x 15 mm - A TypeMG601560 x 60 x 15 mm - A Type40 x 40 x 28 mm - A TypeMG402840 x 40 x 28 mm - A Type40 x 40 x 28 mm - B TypeMG402840 x 40 x 28 mm - B Type40 x 40 x 28 mm - D TypeMG402840 x 40 x 28 mm - D Type
