Cooling fan series

MG4028 High Static Pressure 40 x 40 x 28 mm - A Type

The MG4028 DC axial fan is a 40 x 40 x 28 mm - A Type solution for routers, set-top boxes and compact electronics. Select by airflow and static pressure at the installed operating point, then validate the chosen variant with a sample on your own unit.

MG4028 High Static Pressure 40 x 40 x 28 mm - A Type
Request a sample →Request a quote

Available variants

MODELS ＆ OPERATING DATA

Values below are loaded from the current catalogue record. Confirm the selected operating point and application before approval.

ModelVoltageRated currentInput powerSpeedAirflowStatic pressureNoise
MG4028M12X12 V DC0.15 A1.8 W70008.73 CFM6.07 mmH₂O36.6 dBA
MG4028M24X24 V DC0.08 A1.8 W70008.73 CFM6.07 mmH₂O36.6 dBA
MG4028H12X12 V DC0.23 A2.76 W850010.6 CFM8.7 mmH₂O37.3 dBA
MG4028H24X24 V DC0.115 A2.76 W850010.6 CFM8.7 mmH₂O37.3 dBA
MG4028HH12X12 V DC0.31 A3.72 W1000012.6 CFM12.05 mmH₂O41.1 dBA
MG4028HH24X24 V DC0.16 A3.72 W1000012.6 CFM12.05 mmH₂O41.1 dBA
MG4028HV12X12 V DC0.4 A4.8 W1200015 CFM16.84 mmH₂O47.3 dBA
MG4028HV24X24 V DC0.2 A4.8 W1200015 CFM16.84 mmH₂O47.3 dBA
MG4028UH12X12 V DC0.48 A5.76 W1400017.9 CFM22.74 mmH₂O50.9 dBA
MG4028UH24X24 V DC0.24 A5.76 W1400017.9 CFM22.74 mmH₂O50.9 dBA
MG4028VH12X12 V DC0.6 A7.2 W1600020.4 CFM29.62 mmH₂O52.6 dBA
MG4028VH24X24 V DC0.3 A7.2 W1600020.4 CFM29.62 mmH₂O52.6 dBA

Built to order

CUSTOMIZATION ＆ OPTIONS

MEGA supplies the fan itself; system-level air paths, ducting and cabinet integration remain the responsibility of the system integrator.

Keep selecting

RELATED SERIES

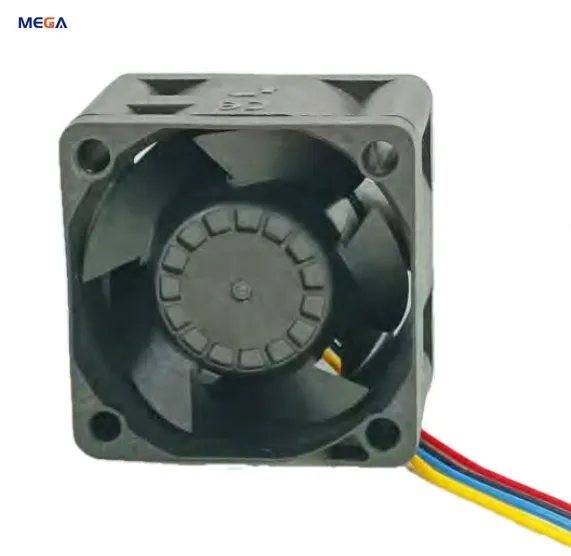

40 x 40 x 28 mm - B TypeMG402840 x 40 x 28 mm - B Type40 x 40 x 28 mm - D TypeMG402840 x 40 x 28 mm - D Type40 x 40 x 28 mm - C TypeMG402840 x 40 x 28 mm - C Type50 x 50 x 15 mm - A TypeMG501550 x 50 x 15 mm - A Type
