Cooling fan series

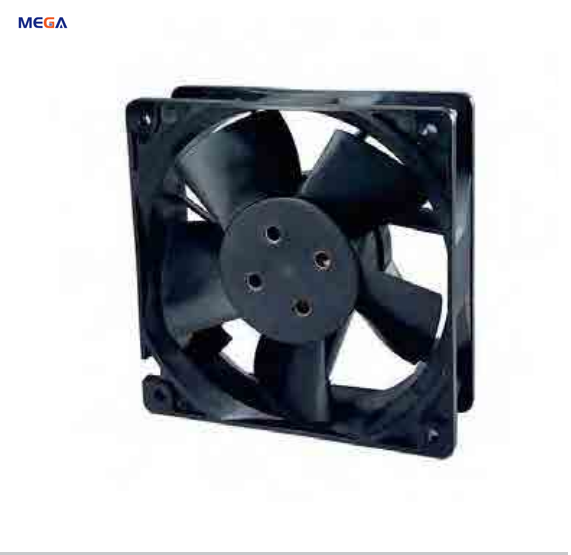

MG12038 High Static Pressure 120 x 120 x 38 mm - D Type

Name: MG12038 High Static Pressure 120 x 120 x 38 mm - D Type
Brand: MEGA Tech
SKU: MG12038

The MG12038 DC axial fan is a 120 x 120 x 38 mm - D Type solution for server, cabinet and equipment ventilation. Select by airflow and static pressure at the installed operating point, then validate the chosen variant with a sample on your own unit.

Request a sample →Request a quote

Selection highlights

Available variants

High Static Pressure up to 37.85 mmH₂O
Pressure-band options: H up to 37.85 mmH₂O, HH up to 37.85 mmH₂O.
Compact 120 x 120 x 38 mm format with 10.8–35.52 W input power
Up to 6,400 RPM and 243.6 CFM
Noise range 53–66 dBA
PWM speed control, FG/RD tachometer output, IP rating, lead wire and connector can be reviewed and configured on request; confirm the final configuration before sampling.
MEGA Tech supplies the fan itself — cabinet airflow design, coils and liquid loops remain the system integrator responsibility.
