Salt fog attacks the fan before it attacks the site
A cooling fan in a coastal or industrial cabinet moves corrosive air through itself, continuously. The aluminium impeller, the steel fasteners, the bearing lubricant and the PCB traces are all exposed — which makes the fan the component salt fog reaches first and kills fastest.
Cabinet engineers know the corrosion checklist for the enclosure: coated panels, stainless hardware, drainage. The fan is harder, because it cannot be sealed away from the air it must move. Every cubic metre of salt-laden air passes through the impeller, over the motor, across the bearing zone and past the PCB that carries the windings and the electronics. A fan specified like an indoor component will run beautifully through commissioning and fail within its first coastal year.
The failure modes are specific and well understood. Galvanic corrosion sets up at every joint between dissimilar metals — exactly the joints a fan is full of: aluminium blade to steel shaft, fastener to plated boss. Salt crystals migrate into bearing lubricant and destroy the film. Bare PCB traces grow conductive dendrites under humid, salted films. Coatings that survive indoor dust tests chalk and lift under cyclic salt and humidity.
The industry's answer is a test ladder, not a single test: the IEC 60068-2-52 salt fog method (test Kb) orders severities as increasing cycles of salt spray and humid storage, so a site's exposure can be matched to a severity class and a fan variant can be certified against it. This guide walks the failure mechanisms, the severity ladder, the design answers that survive it, and the validation that proves the variant before the cabinet ships to the coast. The cabinet-level context — humidity, condensation and solar load — is covered in the outdoor cabinet humidity and fan control guide.
What salt fog actually does to a fan
Four mechanisms, all accelerated by the fan's own airflow: galvanic corrosion, lubricant destruction, trace dendrites and coating failure.
Galvanic corrosion needs three things: dissimilar metals, an electrolyte and electrical contact. A fan assembles all three by construction — aluminium or plastic impellers on steel shafts, plated fasteners into aluminium bosses, copper windings near tin-plated terminals. Salt fog deposits the electrolyte; the fan's humidity cycles keep it wet; the joints corrode from the inside out. The visible symptom is white or rust-coloured weeping at fasteners; the functional symptom is imbalance, then bearing drag, then seizure.
Bearings fail through their lubricant. Salt crystals and corrosion products contaminate the grease or oil, raising friction and abrading the surfaces the film protects. Ball bearings with effective seals resist this far longer than open sleeve systems, whose oil film is both exposed and easily contaminated — one more reason the bearing selection for a coastal cabinet is a sealing question as much as a life question.
Electronics fail through humidity films. A salted, humid film on a bare PCB is a weak electrolyte; under bias, copper migrates and grows dendrites between traces until a leakage path or a short appears. The fan's drive PCB sits inside this environment with bias applied 24/7. And coatings fail by cycle: each salt spray followed by humid storage swells and dries the film; a coating qualified for steady humidity can lift under the cyclic regime that defines the IEC test.
| Mechanism | Where it strikes | Design answer |
|---|---|---|
| Galvanic corrosion | Dissimilar-metal joints: impeller-shaft, fasteners, terminals | Compatible metal pairs, isolation washers, sealed joints |
| Lubricant contamination | Bearing zone — grease or oil film | Sealed ball bearings or documented sealed platforms |
| Trace dendrites | Drive PCB under bias in humid salt film | Conformal-coated boards as a certified variant |
| Coating cycle failure | Impeller, frame and PCB coatings | Coatings qualified to the cyclic IEC regime, not steady humidity |
The severity ladder: matching the variant to the site
IEC 60068-2-52 test Kb orders severities as increasing numbers of spray-plus-humidity cycles. The ladder exists so that 'coastal' stops being an adjective and becomes a testable class.
The method alternates salt spray phases with humid storage phases, and the severity classes differ in how many cycles the specimen must survive. A low severity exercises a sheltered, inland-industrial exposure; the top severities represent direct coastal and offshore exposure. The engineering value of the ladder is matched selection: the site's exposure class is written into the requirement, and the fan variant is certified to that class with a test report — not to a brochure adjective.
Over-specification has a cost, and it is worth saying plainly: the highest severity class buys material and coating choices that cost money and sometimes airflow. A cabinet 50 kilometres inland does not need the offshore variant, and a budget spent there is missing from elsewhere. Under-specification, of course, costs a fan. The honest process reads the site — distance from open water, prevailing wind, industrial aerosols, cabinet sealing and filter regime — and selects the severity class with evidence, the same way the operating point method reads resistance instead of guessing it.
The report matters as much as the class. A variant claimed as salt-fog qualified should arrive with the test report naming the method, the severity, the specimen option code and the pass criteria. Where the fan is a custom variant — coated board, sealed bearing, special fasteners — the report should name the variant exactly as the option code does, so the production units and the tested unit are the same object.
One practical note on the ladder: it is a single-axis simplification of a multi-axis environment. Time-of-wetness, chloride deposition rate, temperature cycling and cleaning regime all modulate what a given severity means at a given site. The ladder remains the right common language for procurement and qualification — it converts a site description into a test that two parties can both verify — but the site evidence that selects the step should record those modifiers, because a sheltered site with aggressive cleaning chemicals can justify a higher severity than its map position suggests.
The design answers that survive the coast
No single fix survives salt fog. The qualified variant stacks four answers: coating, sealing, materials and drainage.
Coating first, because the drive PCB is the fan's most failure-prone assembly in salted air. Conformal-coated boards — offered as option-code variants across the major fan families — deny the humidity film its electrolyte path. The coating must be qualified to the cyclic regime at the site's severity, and the coating must not block the balance areas or the sensor apertures, which is why qualified variants come from the factory rather than from a post-coating service.
Sealing and materials next. Sealed ball bearings keep the lubricant away from the salt load; stainless or coated fasteners remove the most common galvanic joints; impeller materials are chosen so that blade and frame do not set up an aggressive pair. Where the path allows, the fan sits behind a filter that takes the salt aerosol load — but a filter in a coastal cabinet is a service commitment, because a loaded filter both raises the operating point and holds a wet salt crust against the airflow.
Drainage completes the stack: cabinets that let condensate and salt spray escape do less damage to everything inside, fans included. And maintenance closes the loop — an inspection interval that looks at fasteners, coatings and bearing noise catches the first corrosion year while it is still a service event instead of an outage. The humidity and condensation half of this environment is treated in the outdoor cabinet validation guide.
The inspection itself has a checklist worth writing down. Fasteners: any weeping stain is a galvanic joint already at work. Coatings: chalking, lifting or blistering at the wet-dry boundary, especially near the fan's own heat. Bearings: a bearing noise that was not there at commissioning is the lubricant's resignation letter. Filters: the crust, not just the pressure — a salt crust holds moisture against the airflow after the fog has passed. Each item takes minutes; together they convert the coastal environment from a silent accelerant into a managed service parameter, and they generate exactly the evidence the next severity-class review needs.
A worked specification: one coastal cabinet, end to end
The process is easiest to see on a concrete case. This example is illustrative, but every step in it is a step a real project takes.

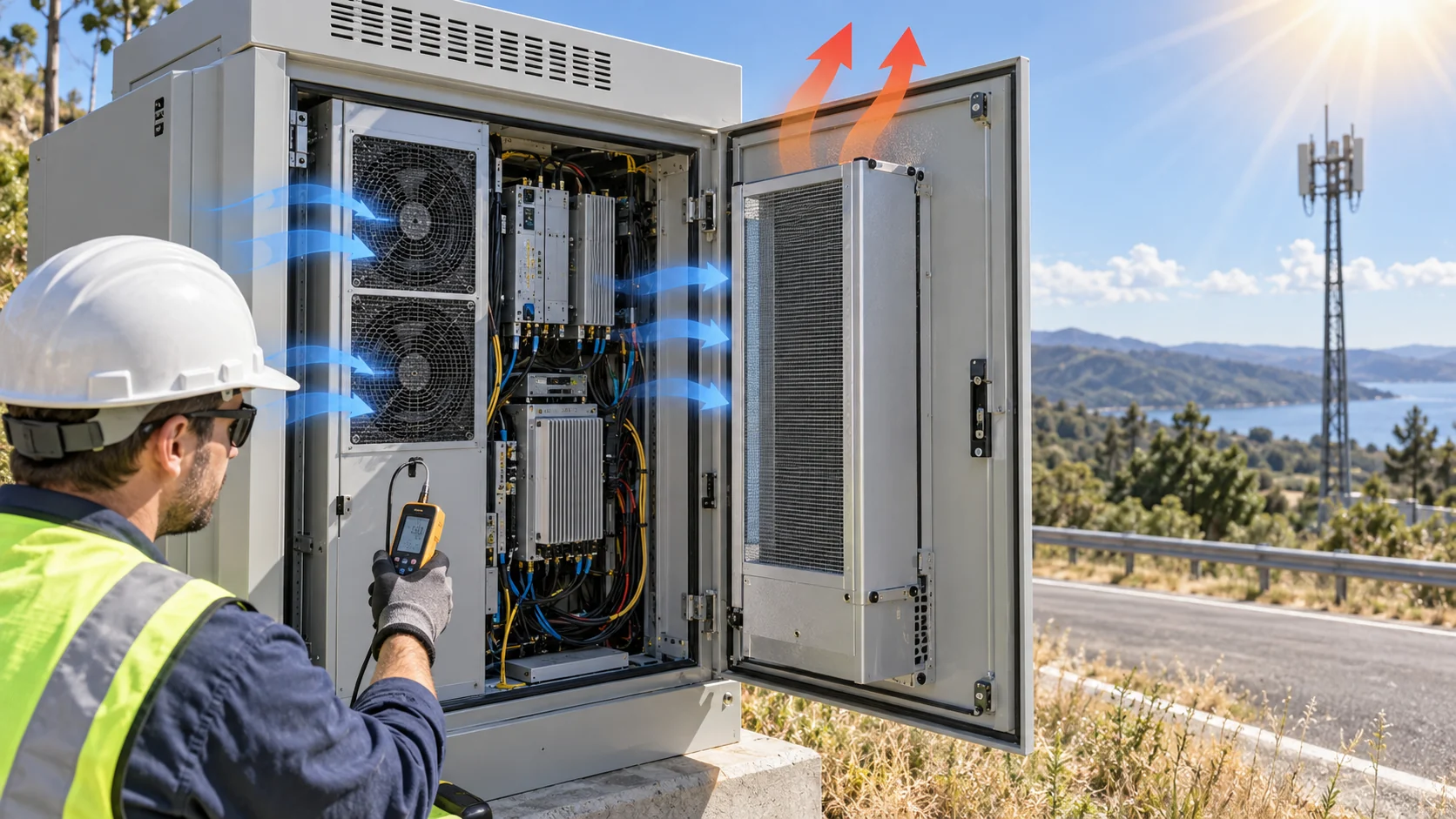

The site: a roadside edge cabinet 800 metres from open water, prevailing onshore wind, no industrial aerosols, cabinet sealed with a filtered intake. The evidence puts the site at a mid-ladder severity — sheltered coastal, above inland-industrial, below direct-spray exposure — and the requirement states that class explicitly, with the site description attached so the choice is auditable.
The thermal duty: the cabinet's electronics need 180 m³/h against a loaded-filter resistance of 42 Pa — stated at the loaded condition, because the coastal filter regime is a service commitment that will be kept. Two fans in the airflow path, N+1 control, four-wire PWM with tach reporting to the cabinet controller.
The variant stack follows from severity plus duty: a conformal-coated drive board qualified to the severity class, sealed ball bearings with their life curve converted to the cabinet's real inlet temperature (which the solar load raises well above ambient — the outdoor cabinet solar and filter guide covers that interaction), corrosion-compatible fastener sets, and impeller material chosen against the frame to avoid the aggressive galvanic pairs.
The validation closes it: direction and fit at install, control sweep on the cabinet controller, thermal worst case at the solar-loaded afternoon, acoustic check if the site has neighbours, and an endurance re-check that runs in the corrosive environment — a clean-lab endurance run answers a different question. The maintenance plan sets the filter interval from the loaded-state pressure and books the first corrosion inspection within the first year, while anything the coastal air finds is still a service event.
| Step | Input | Output |
|---|---|---|
| Site class | Exposure evidence: distance, wind, aerosols, sealing | A stated severity class with the description attached |
| Thermal duty | Required airflow at the loaded-filter resistance | 180 m³/h at 42 Pa (illustrative), N+1 control |
| Variant stack | Severity class plus duty | Coated board, sealed bearings, fastener set, impeller material |
| Qualification | Variant option code | Test report naming method, severity and exact code |
| Validation | Cabinet controller and real site states | Direction, sweep, solar worst case, endurance in corrosive air |
What MEGA Tech does with coastal and corrosive-duty fans
We manufacture salt-fog-qualified fan variants — coated boards, sealed bearing systems, corrosion-resistant fastener sets — matched to the severity class your site demands, with the test report to back the option code.
What we do: given the site's exposure description and the cabinet's operating point, we propose fan variants certified to the matching IEC 60068-2-52 severity class, provide the test report naming the exact option code, and support the validation protocol — including endurance in the corrosive environment, which behaves differently from a clean-lab endurance run. For cabinets already in service, the same process runs as a replacement selection: the failed original's option code plus the site class selects the qualified replacement.
What we need from you: the site's exposure class — or the information to derive it: distance from open water, prevailing wind, industrial aerosols, cabinet sealing and filter regime — plus the cabinet's operating point and the fan's electrical interface. The severity class and the operating point together select the variant; neither alone is enough.
Where our boundary is: we do not supply cabinet enclosures, filters, liquid cooling loops or site maintenance services. Our scope is the fan and its qualification data — the variant, the test report and the sample that lets your team verify both in the real cabinet.
Engineer FAQ
The questions engineers actually ask about salt-fog fan selection, with the short engineering answers.
Q: Is a coated fan board enough for a coastal site? A: Coating answers one of four mechanisms. Sealed bearings, compatible fastener materials and drainage complete the variant — which is why qualified variants are option codes, not single features.
Q: The site is 3 kilometres from the sea. Do we need the top severity? A: Not necessarily. Severity follows exposure evidence — wind direction, cabinet sealing, filter regime, industrial aerosols — not distance alone. Over-specification costs money that competes with the rest of the design.
Q: Can we coat indoor fans ourselves for a coastal retrofit? A: Factory coating is applied before components that post-coating can compromise — balance areas, sensor apertures, connectors — and is qualified to the cyclic test. A retrofitted board is an unqualified variant; order the qualified option code instead.
Q: Does the fan's own heat help evaporate the salt? A: Locally, and that is part of the problem — the cyclic wet-dry-wet regime concentrates salt films at the wet-dry boundary. The IEC method's humidity storage phases reproduce exactly this mechanism.
Q: How often should coastal cabinet fans be inspected? A: Fasteners, coatings and bearing noise on a fixed interval set by the site's severity class — the first corrosion year is a service event if it is inspected and an outage if it is not.
Q: We already have a corroded fan in service. Is the replacement path different? A: No — the replacement method applies unchanged, plus one input: the site's severity class, so the replacement arrives as the qualified variant rather than a like-for-like copy of the mistake.
Q: Do plastic impeller fans solve the corrosion problem? A: They remove one galvanic pair — the impeller — but the shaft joint, fasteners, bearing and PCB remain exposed. Plastic blades are one material choice inside a variant stack, not a severity class by themselves.
Questions for a design review
Take these to the review with the site exposure description and the candidate variant's test report on the table.
Corrosive-duty selection is a requirements exercise with a test report attached. These questions close the gaps that turn coastal sites into early failures.
- What severity class does the site's evidence support, and which document states it?
- Does the candidate variant's test report name the method, severity and exact option code of the shipping units?
- Which of the four mechanisms — galvanic, lubricant, dendrite, coating — does each design answer address, and which are unaddressed?
- Is the bearing system sealed against the salt load, and is its life curve converted to the real inlet temperature?
- Is the filter — if any — a service commitment with an interval, and was the fan selection made at the loaded condition?
- Does the maintenance plan inspect fasteners, coatings and bearing noise from the first year?
- Has an endurance re-check been run or scheduled in the corrosive environment, not only in clean air?
