Cooling fan series

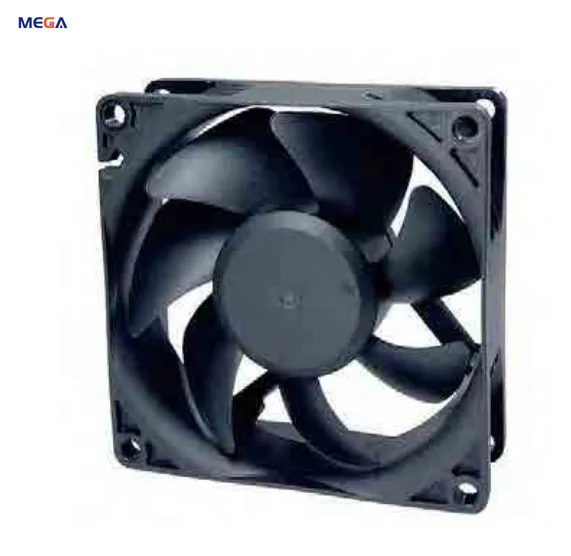

MG8025 High Static Pressure 80 x 80 x 25 mm - A Type

The MG8025 DC axial fan is a 80 x 80 x 25 mm - A Type solution for networking, industrial electronics and equipment enclosures. Select by airflow and static pressure at the installed operating point, then validate the chosen variant with a sample on your own unit.

MG8025 High Static Pressure 80 x 80 x 25 mm - A Type
Request a sample →Request a quote

Available variants

MODELS ＆ OPERATING DATA

Values below are loaded from the current catalogue record. Confirm the selected operating point and application before approval.

ModelVoltageRated currentInput powerSpeedAirflowStatic pressureNoise
MG8025LL12X12 V DC0.08 A0.96 W200024.4 CFM2 mmH₂O25.8 dBA
MG8025L12X12 V DC0.12 A1.44 W250031.4 CFM2.8 mmH₂O29.1 dBA
MG8025M12X12 V DC0.15 A1.8 W300037.9 CFM4 mmH₂O34.2 dBA
MG8025M24X24 V DC0.08 A1.92 W300037.9 CFM4 mmH₂O34.2 dBA
MG8025M48X48 V DC0.04 A1.92 W300037.9 CFM4 mmH₂O34.2 dBA
MG8025H12X12 V DC0.25 A3 W350044.3 CFM5.3 mmH₂O36.9 dBA
MG8025HH12X12 V DC0.3 A3.6 W400050.8 CFM7 mmH₂O41.8 dBA
MG8024 V DC0.16 A3.84 W400050.8 CFM7 mmH₂O41.8 dBA
MG8025HH48X48 V DC0.08 A3.84 W400050.8 CFM7 mmH₂O41.8 dBA
MG8025VH12X12 V DC0.5 A6 W450057.6 CFM8.5 mmH₂O45.4 dBA
MG8025HV12X12 V DC0.63 A7.56 W500060.5 CFM8.9 mmH₂O46.3 dBA
MG8025HV24X24 V DC0.32 A7.68 W500060.5 CFM8.9 mmH₂O46.3 dBA
MG8025HV48X48 V DC0.17 A8.16 W500060.5 CFM8.9 mmH₂O46.3 dBA

Built to order

CUSTOMIZATION ＆ OPTIONS

MEGA supplies the fan itself; system-level air paths, ducting and cabinet integration remain the responsibility of the system integrator.

Keep selecting

RELATED SERIES

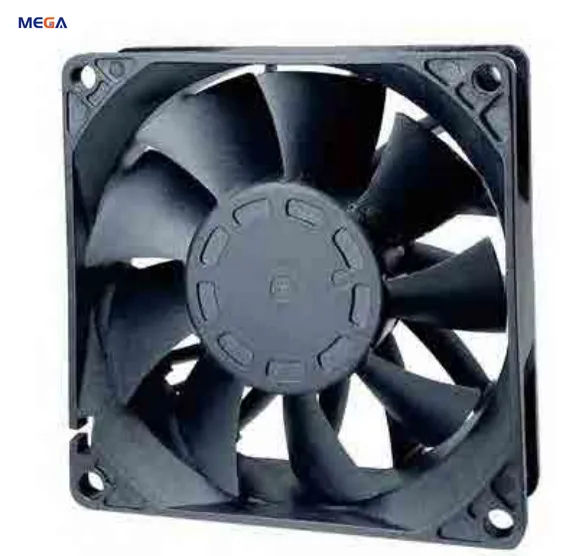

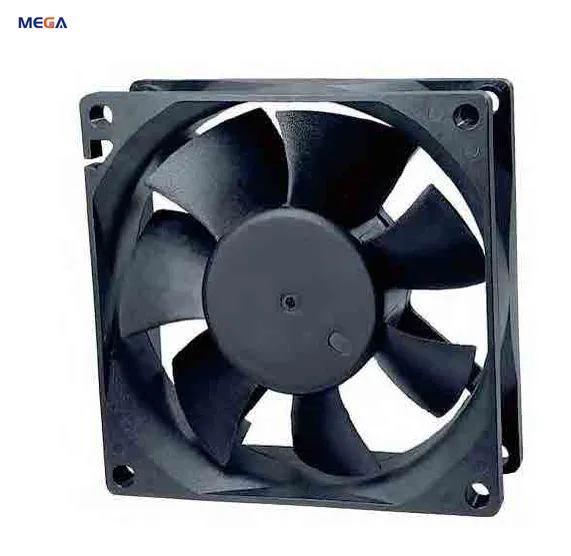

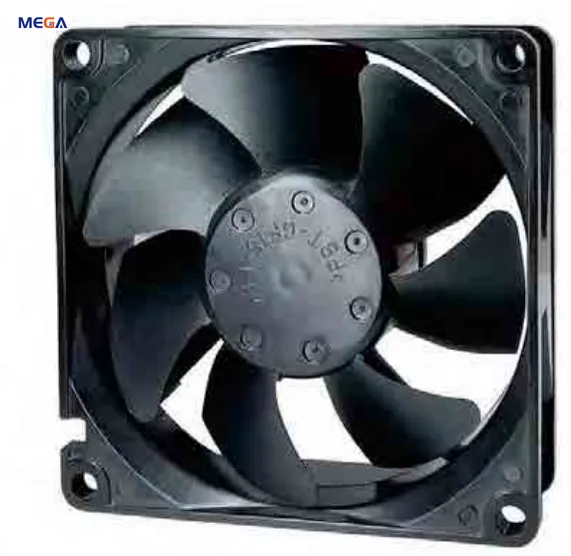

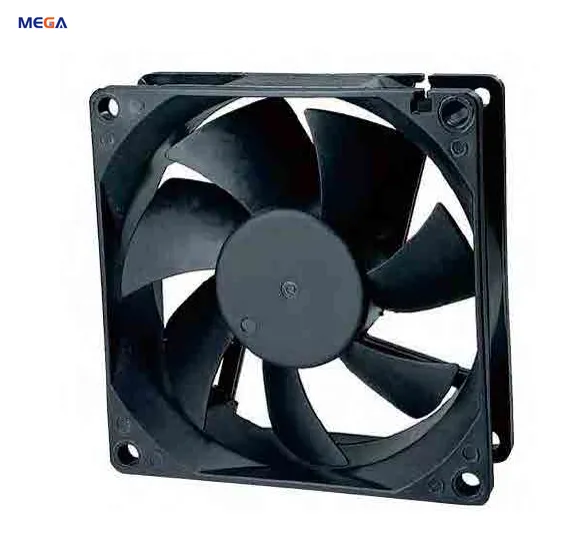

80 x 80 x 25 mm - B TypeMG802580 x 80 x 25 mm - B Type80 x 80 x 25 mm - C TypeMG802580 x 80 x 25 mm - C Type80 x 80 x 25 mm - D TypeMG802580 x 80 x 25 mm - D Type80 x 80 x 25 mm - E TypeMG802580 x 80 x 25 mm - E Type
