Cooling fan series

MG7015 High Static Pressure 70 x 70 x 15 mm - B Type

The MG7015 DC axial fan is a 70 x 70 x 15 mm - B Type solution for networking, industrial electronics and equipment enclosures. Select by airflow and static pressure at the installed operating point, then validate the chosen variant with a sample on your own unit.

MG7015 High Static Pressure 70 x 70 x 15 mm - B Type
Request a sample →Request a quote

Available variants

MODELS ＆ OPERATING DATA

Values below are loaded from the current catalogue record. Confirm the selected operating point and application before approval.

ModelVoltageRated currentInput powerSpeedAirflowStatic pressureNoise
MG7015VL05X5 V DC0.1 A0.48 W200013.9 CFM0.89 mmH₂O22.9 dBA
MG7015VL12X12 V DC0.04 A0.48 W250014.8 CFM1.36 mmH₂O22.9 dBA
MG7015VL24X24 V DC0.02 A0.48 W250014.8 CFM1.36 mmH₂O22.9 dBA
MG7015LL12X12 V DC0.07 A0.84 W300019.7 CFM2.1 mmH₂O27.2 dBA
MG7015LL24X24 V DC0.03 A0.72 W300019.7 CFM2.1 mmH₂O27.2 dBA
MG7015L12X12 V DC0.08 A0.96 W350023 CFM2.92 mmH₂O33.3 dBA
MG7015L24X24 V DC0.04 A0.96 W350023 CFM2.92 mmH₂O33.3 dBA
MG7015M12X12 V DC0.12 A1.44 W400026 CFM3.55 mmH₂O36.2 dBA
MG7015M24X24 V DC0.06 A1.44 W400026 CFM3.55 mmH₂O36.2 dBA
MG7015H12X12 V DC0.29 A3.48 W450029.8 CFM4.62 mmH₂O38.9 dBA
MG7015H24X24 V DC0.09 A2.16 W450029.8 CFM4.62 mmH₂O38.9 dBA

Built to order

CUSTOMIZATION ＆ OPTIONS

MEGA supplies the fan itself; system-level air paths, ducting and cabinet integration remain the responsibility of the system integrator.

Keep selecting

RELATED SERIES

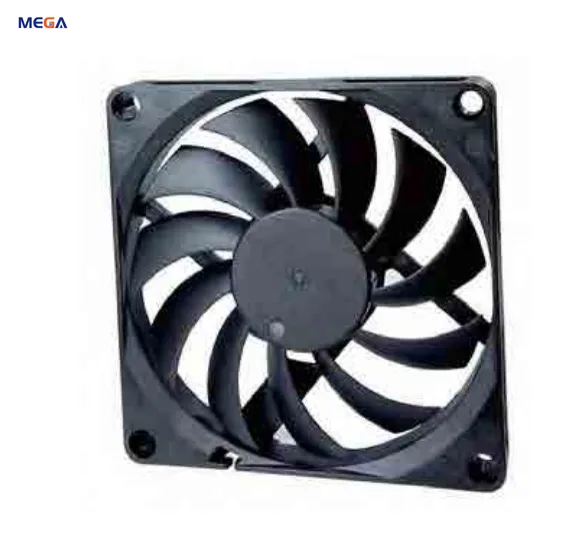

70 x 70 x 15 mm - C TypeMG701570 x 70 x 15 mm - C Type70 x 70 x 15 mm - A TypeMG701570 x 70 x 15 mm - A Type64 x 53 x 21 mm - B TypeMG753064 x 53 x 21 mm - B Type80 x 80 x 10 mm - A TypeMG801080 x 80 x 10 mm - A Type
