Cooling fan series

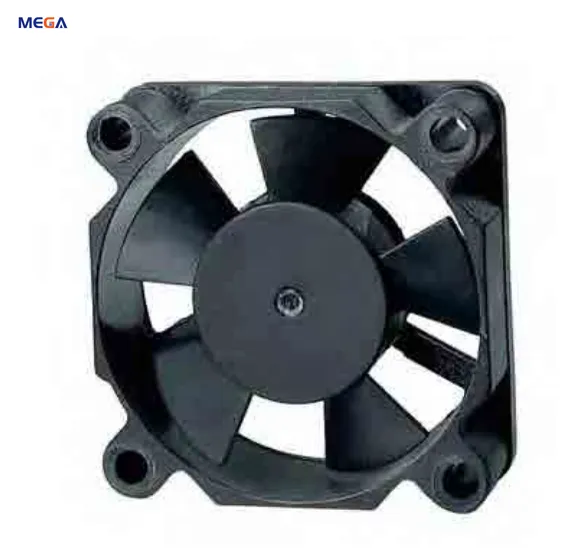

MG3510 High Static Pressure 35 x 35 x 10 mm - A Type

The MG3510 DC axial fan is a 35 x 35 x 10 mm - A Type solution for routers, set-top boxes and compact electronics. Select by airflow and static pressure at the installed operating point, then validate the chosen variant with a sample on your own unit.

MG3510 High Static Pressure 35 x 35 x 10 mm - A Type
Request a sample →Request a quote

Available variants

MODELS ＆ OPERATING DATA

Values below are loaded from the current catalogue record. Confirm the selected operating point and application before approval.

ModelVoltageRated currentInput powerSpeedAirflowStatic pressureNoise
MG3510M05X5 V DC0.1 A0.5 W70003.91 CFM2.84 mmH₂O28 dBA
MG3510M12X12 V DC0.042 A0.5 W70003.91 CFM2.84 mmH₂O28 dBA
MG3510ML05X5 V DC0.12 A0.6 W80004.5 CFM3.51 mmH₂O31 dBA
MG3510ML12X12 V DC0.05 A0.6 W80004.5 CFM3.51 mmH₂O31 dBA
MG3510H05X5 V DC0.13 A0.65 W90005 CFM4.31 mmH₂O34.4 dBA
MG3510H12X12 V DC0.054 A0.65 W90005 CFM4.31 mmH₂O34.4 dBA
MG3510LH05X5 V DC0.14 A0.7 W100005.32 CFM5.12 mmH₂O37.1 dBA
MG3510LH12X12 V DC0.058 A0.7 W100005.32 CFM5.12 mmH₂O37.1 dBA
MG3510HH05X5 V DC0.16 A0.8 W110006.06 CFM6.11 mmH₂O39.4 dBA
MG3510HH12X12 V DC0.067 A0.8 W110006.06 CFM6.11 mmH₂O39.4 dBA
MG3510HL05X5 V DC0.18 A0.9 W120006.39 CFM6.77 mmH₂O41 dBA
MG3510HL12X12 V DC0.075 A0.9 W120006.39 CFM6.77 mmH₂O41 dBA
MG3510VH05X5 V DC0.2 A1 W130006.87 CFM7.97 mmH₂O42.6 dBA
MG3510VH12X12 V DC0.083 A1 W130006.87 CFM7.97 mmH₂O42.6 dBA
MG3510HV12X12 V DC0.092 A1.1 W140007.41 CFM8.74 mmH₂O44.7 dBA

Built to order

CUSTOMIZATION ＆ OPTIONS

MEGA supplies the fan itself; system-level air paths, ducting and cabinet integration remain the responsibility of the system integrator.

Keep selecting

RELATED SERIES

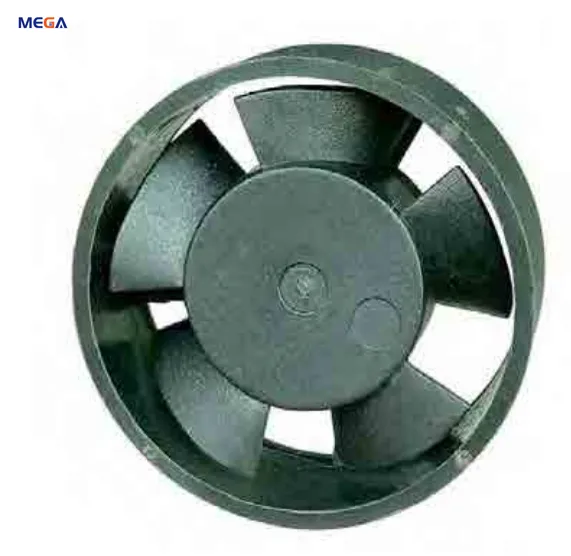

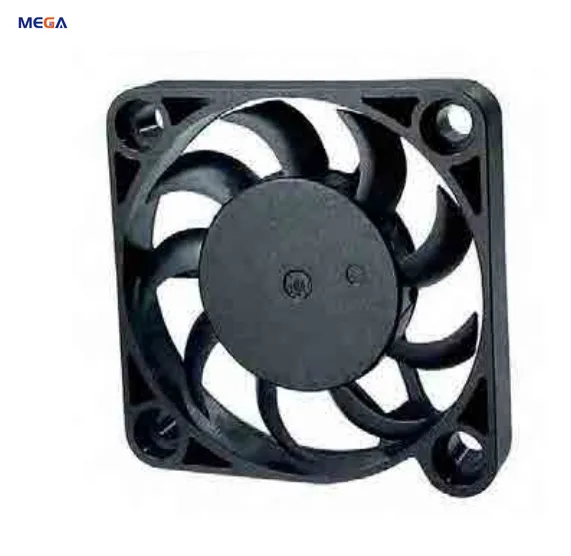

35 x 35 x 10 mm - B TypeMG351035 x 35 x 10 mm - B Type40 x 40 x 7 mm - A TypeMG400740 x 40 x 7 mm - A Type30 x 30 x 10 mm - A TypeMG301030 x 30 x 10 mm - A Type30 x 30 x 10 mm - B TypeMG301030 x 30 x 10 mm - B Type
