Cooling fan series

MG12025 High Static Pressure 120 x 120 x 25 mm - A Type

The MG12025 DC axial fan is a 120 x 120 x 25 mm - A Type solution for server, cabinet and equipment ventilation. Select by airflow and static pressure at the installed operating point, then validate the chosen variant with a sample on your own unit.

MG12025 High Static Pressure 120 x 120 x 25 mm - A Type
Request a sample →Request a quote

Available variants

MODELS ＆ OPERATING DATA

Values below are loaded from the current catalogue record. Confirm the selected operating point and application before approval.

ModelVoltageRated currentInput powerSpeedAirflowStatic pressureNoise
MG12025L12X12 V DC0.18 A2.16 W150064.2 CFM1.76 mmH₂O30.5 dBA
MG12025L24X24 V DC0.09 A2.16 W150064.2 CFM1.76 mmH₂O30.5 dBA
MG12025L48X48 V DC0.045 A2.16 W150064.2 CFM1.76 mmH₂O30.5 dBA
MG12025M12X12 V DC0.25 A3 W200076.6 CFM2.43 mmH₂O36.5 dBA
MG12025M24 V DC0.125 A3 W200076.6 CFM2.43 mmH₂O36.5 dBA
MG12025M48X48 V DC0.063 A3 W200076.6 CFM2.43 mmH₂O36.5 dBA
MG12025H12X12 V DC0.31 A3.72 W250092.4 CFM3.98 mmH₂O42.1 dBA
MG12025H24X24 V DC0.155 A3.72 W250092.4 CFM3.98 mmH₂O42.1 dBA
MG12025H48X48 V DC0.078 A3.72 W250092.4 CFM3.98 mmH₂O42.1 dBA
MG12025HH12X12 V DC0.45 A5.4 W3000107 CFM5.04 mmH₂O47.4 dBA
MG12025HH24 V DC0.225 A5.4 W3000107 CFM5.04 mmH₂O47.4 dBA
MG12025HH48X48 V DC0.112 A5.4 W3000107 CFM5.04 mmH₂O47.4 dBA

Built to order

CUSTOMIZATION ＆ OPTIONS

MEGA supplies the fan itself; system-level air paths, ducting and cabinet integration remain the responsibility of the system integrator.

Keep selecting

RELATED SERIES

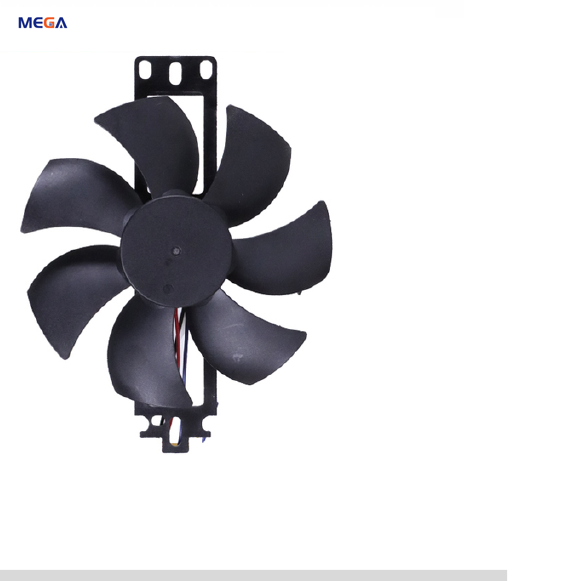

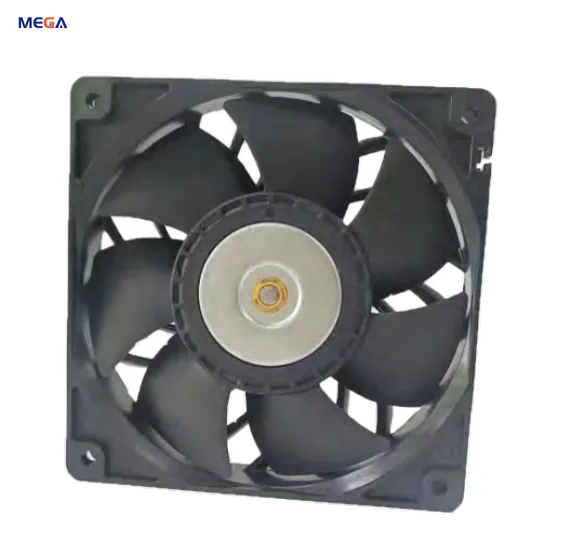

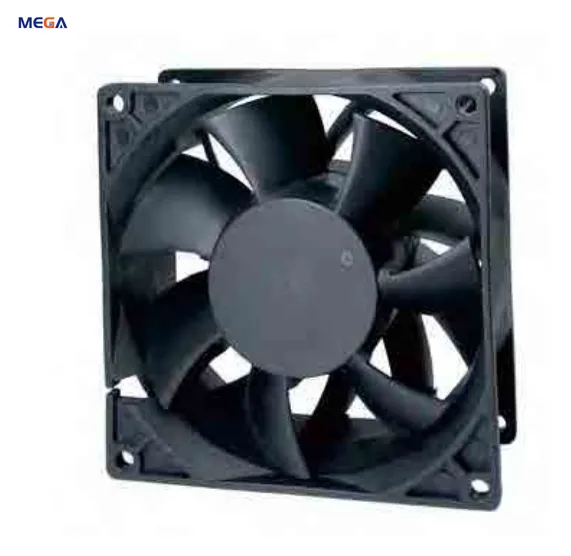

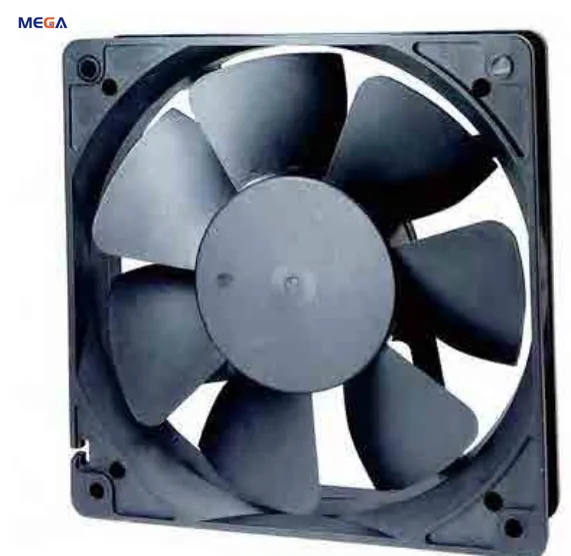

120 x 120 x 25 mm - B TypeMG12025120 x 120 x 25 mm - B Type120 x 120 x 25 mm - D TypeMG12025120 x 120 x 25 mm - D Type120 x 120 x 25 mm - E TypeMG12025120 x 120 x 25 mm - E Type92 x 92 x 38 mm - A TypeMG923892 x 92 x 38 mm - A Type
