Cooling fan series

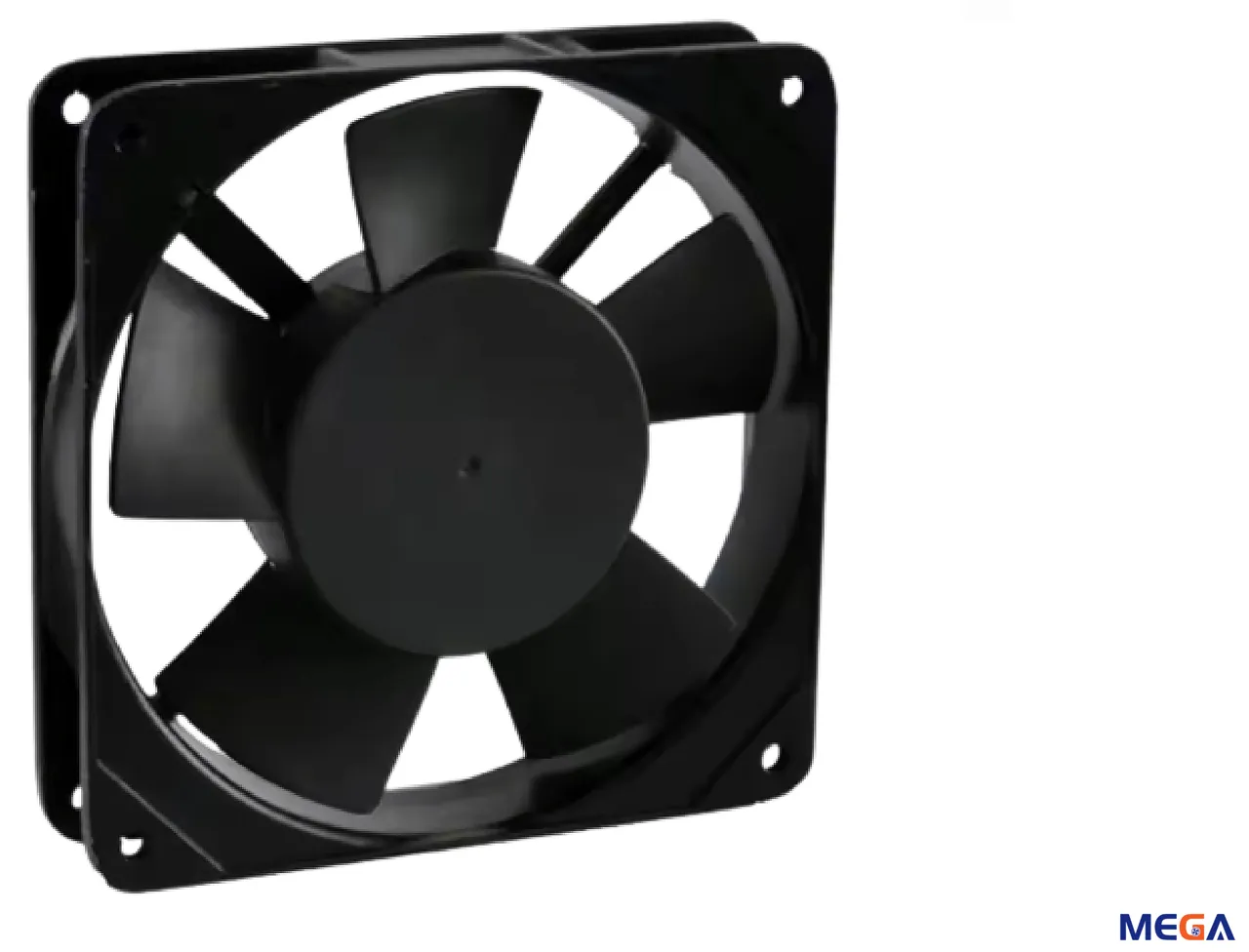

MG12025 120 x 120 x 25 mm - A Type AC axial fan
MG12025 120 x 120 x 25 mm - A Type AC axial fan — 4 variants, 110/220 V AC, 64–76 CFM, 5–5.5 mmH₂O. Model table, P-Q curve, dimension drawing. Select by airflow and static pressure at the installed operating point, then validate the chosen variant with a sample.
Available variants
MODELS ＆ OPERATING DATA
Values below are loaded from the current catalogue record. Confirm the selected operating point and application before approval.
| Model | Voltage | Current | Power | Frequency | Speed | Airflow | Static pressure | Noise |
|---|
Built to order
AC CONFIGURATION REVIEW
Confirm the catalogue voltage, 50/60 Hz frequency, wiring, bearing and installed operating point before sampling.
System-level cabinet airflow, coils and liquid loops remain the system integrator’s responsibility.
