The enclosure passed the bench test and still overheated in the field
An AC axial fan is easy to specify by frame size. The engineering work starts when the fan sees a filter, grille, cable bundle and a real heat load.
A control-cabinet builder had a familiar problem: the prototype stayed below its temperature limit with the door open, but the production enclosure ran hot after the filter and protective grille were fitted. The fan was not defective. The selection had been made from the free-air CFM number, while the installed system required pressure to push air through the filter, grille and crowded cabinet path.
This is where AC axial fans remain useful. A 110 V or 220 V AC fan can connect directly to the equipment power architecture, provide a fixed and repeatable airflow path, and cover a broad range of industrial enclosure sizes. But the same simplicity can hide the design variables: 50 Hz and 60 Hz curves are not interchangeable, a 120 mm fan is not defined by its square outline alone, and a larger fan can still underperform if the intake or exhaust path is restrictive.
The failure review also exposed a documentation gap. The purchasing record named only a nominal fan size and voltage, while the engineering record needed the frequency, pressure point, filter condition, noise limit and mounting orientation. Those missing fields made a substitute look equivalent even though its curve and acoustic behavior were different. A good AC fan specification is therefore a small system specification: it tells the supplier what the fan must do after installation, not merely what can fit into the panel.
This guide gives a practical selection sequence for electrical enclosures, VFD cabinets, UPS equipment, industrial power supplies and similar forced-air systems. It uses the AC catalogue as the product reference, while keeping the boundary clear: MEGA Tech develops and manufactures custom cooling fans; the complete cabinet, electrical design and system safety qualification remain with the equipment builder or system integrator.
Start with heat load, temperature rise and the air path
The first calculation is not fan size. It is the amount of heat that must leave the enclosure and the temperature rise the equipment can tolerate.
List the heat sources that operate together: VFD power electronics, UPS conversion stages, contactors, transformers, braking resistors, power supplies, relays and any battery or charger modules. Use the electrical losses supplied by the equipment designer where available. Do not treat the cabinet's rated electrical input as heat load; much of that power may leave through the load rather than becoming heat inside the enclosure.
For a first air-side estimate, engineers often use the sensible-heat relationship Q = P/(rho x cp x Delta T), where P is heat in watts, rho is air density, cp is air specific heat and Delta T is the permitted air temperature rise. The result is a required mass or volume flow before system resistance is considered. It is a screening calculation, not a final acceptance value: altitude, recirculation, nonuniform component heating and the actual inlet temperature can move the design point.
Define the protected temperature as well as the average cabinet temperature. A VFD heat sink, UPS capacitor bank or power semiconductor may have a tighter local limit than the air near the door. Map the hot components and decide whether air must pass across them in sequence or whether a short-circuit path could bypass them. A fan that delivers the calculated total flow but misses the heat source has not solved the thermal problem.
| Input to the review | What to record | Why it changes fan selection |
|---|---|---|
| Heat load | Losses in watts by operating mode | Sets the required sensible-airflow baseline |
| Temperature | Inlet, cabinet limit and local component limit | Defines allowable temperature rise and derating |
| Air path | Filter, grille, louvre, duct and cable obstruction | Creates static-pressure demand |
| Operating mode | Continuous, intermittent or overload duty | Changes thermal worst case and validation time |
| Environment | Dust, humidity, altitude and ambient range | Changes service interval and the valid sample test |
Read the AC catalogue by voltage and frequency first
110 V and 220 V are not marketing variants. They determine how the fan fits the equipment power architecture and which electrical checks belong in the design review.
The AC catalogue records 110 V AC and 220 V AC variants across the listed series, with 50 Hz and 60 Hz operating data. Start by matching the fan's rated voltage to the supply that will actually be present at the fan terminals. Check tolerance, startup behavior, protective device coordination and whether the fan is energized continuously or switched by a thermostat, contactor or controller.
Frequency must remain visible in the specification. The catalogue presents separate 50 Hz and 60 Hz performance in many P-Q curves and tables. A 60 Hz point can show higher speed and airflow than a 50 Hz point, but the resulting noise, input power, current and system operating point also change. Do not copy a 60 Hz maximum CFM into a 50 Hz design calculation or assume that a 50 Hz fan can be run at 60 Hz without confirming the specific motor and product record.
Keep the electrical language precise. A fixed-speed AC axial fan is not automatically a variable-speed fan, and a voltage change is not a substitute for a validated control method. If the enclosure needs speed modulation, alarm feedback, low-voltage operation or a specific switching strategy, put that requirement into the custom specification and validate the complete fan, controller and wiring arrangement as a sample.
Use the system curve, not the free-air number
Every filter, grille, louvre and narrow passage consumes pressure. The fan's operating point is where its P-Q curve meets the enclosure system curve.
A catalogue maximum-airflow value is normally close to the zero-pressure end of the fan curve. An enclosure rarely operates there. The intake filter adds resistance that rises as dust loads. A grille or louvre adds a loss that depends on free area and velocity. Cable trays, heat sinks and closely spaced components disturb the flow and can create local recirculation. The exhaust opening matters just as much as the fan inlet.
Plot the pressure demand against airflow, even if the first version uses measured points rather than a detailed CFD model. Then overlay the selected AC fan's P-Q curve at the correct voltage and frequency. The intersection is the expected operating point. A design with a comfortable pressure margin is easier to validate than one that depends on a single optimistic curve reading, but excessive oversizing can bring unnecessary noise, power and mechanical stress.

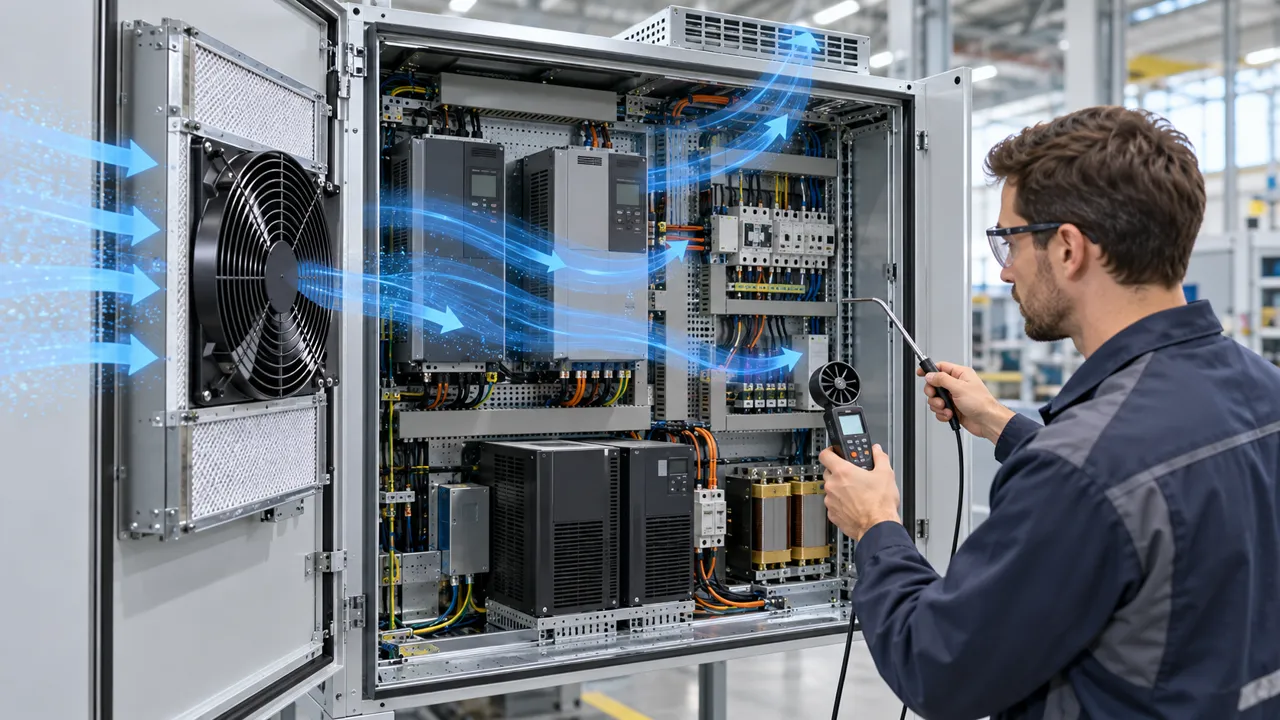

Measure the installed sample. A vane anemometer can support a first airflow check, while pressure taps or a calibrated differential-pressure instrument can reveal whether the fan is seeing the expected restriction. Measure inlet air temperature and the protected component temperature at the same time. If the cabinet temperature is high but the pressure and airflow are lower than predicted, fix the air path before simply selecting a faster fan.
What the catalogue range means in practice
The AC range spans compact cabinet fans and larger airflow modules, so the selection can follow the enclosure rather than forcing one frame size into every design.
The current product catalogue includes AC axial families from 60 x 60 x 30 mm through larger formats such as 120 x 120 x 25 mm, 120 x 120 x 38 mm, 172 x 150 mm, 180 x 180 mm, 200 x 200 mm and 220 x 220 x 60 mm. The exact product record, not the nominal outline, determines the valid voltage, frequency, current, power, speed, noise and pressure values.
As an example of how different the bands can be, the catalogue record for an MG12025 AC axial fan lists 110/220 V variants with maximum airflow values of 64/76 CFM and maximum air-pressure values of 5/5.5 mmH2O across the listed frequency data. The MG22060 record is a much larger airflow class, with 480/520 CFM and 30.48 mmH2O shown in its table. These are catalogue maxima, not promises for an installed cabinet; the filter, grille and system curve decide the useful operating point.
The practical decision is often architectural. A compact 80 or 92 mm fan may fit a small drive or power-supply compartment but need a higher-pressure variant when the filter area is small. A 120 or 135 mm fan may move more air through a cabinet opening with lower face velocity. A 172 to 220 mm fan may suit a larger heat exchanger or enclosure, but it also changes the cutout, guard, vibration, service access and acoustic behavior. Treat those mechanical changes as part of the thermal review, because the fan, panel and guard form one airflow assembly.
Bearing, frame and installation choices are part of thermal design
A fan that meets airflow on day one can still be the wrong part if its bearing, orientation, mounting and service conditions are not compatible with the enclosure.
The AC catalogue includes ball-bearing and sleeve-bearing options in its product families. Treat the bearing choice as an application question rather than a universal ranking. Ask how the fan will be oriented, how often it will run, what ambient temperature it sees and whether vibration from a drive, transformer or compressor is transmitted into the frame. The correct answer depends on the verified product record and the customer's duty cycle.
The frame and impeller materials also affect the mechanical integration. Several catalogue pages identify aluminium frames and either plastic or aluminium impellers, with weight varying by size and type. Confirm the mounting-hole pattern, depth, guard clearance, cable route and service access from the dimension drawing. A fan that fits the cutout but places the cable in the hot-air path or presses against a guard can create a field failure that the P-Q curve never predicted.
Mounting should be checked with the production panel, gasket, fasteners and guard. Avoid letting a thin panel act as an unintended resonator. Check for rubbing, abnormal vibration and tonal noise after the cabinet reaches operating temperature. If a filter is removable, repeat the test after removal and refitting; an incorrectly seated filter can change both airflow and noise.
A five-step sample validation plan
The sample should prove the fan in the cabinet, not only prove that the motor spins on a bench.
Step one is configuration control. Freeze the exact series, type, voltage, frequency, bearing, connector or lead arrangement, guard and filter used for the test. Photograph the installed airflow path and record the measurement instruments. If the sample is a custom configuration, keep the drawing and specification tied to the sample identity.
Step two is the baseline test. Record inlet temperature, cabinet temperature at several locations, heat-load mode, fan current, input power, noise and airflow or pressure. Let the system reach a repeatable thermal condition rather than accepting an early reading while the metalwork and power electronics are still warming.
Step three is the restriction test. Test the production filter and grille, then repeat with a clean filter and with the expected service condition if that condition is defined. The purpose is not to manufacture a failure; it is to identify how much operating margin the design has before airflow falls below the thermal requirement.
Step four is the electrical and mechanical test. Check voltage at the fan terminals, startup, switching behavior, current, vibration, bearing noise and cable clearance. If the fan is controlled by a thermostat or contactor, test the actual switching device and wiring, not a laboratory supply that hides the installed behavior.
Step five is the acceptance decision. Approve the sample only when the measured protected-component temperature, airflow or pressure, electrical values and acoustic behavior meet the project limits. If the result misses, change one variable at a time: air path, filter area, fan series, fan quantity or control method. A sample record that shows why the change was made is more valuable than a catalogue screenshot.
When AC is the right choice — and when to compare DC or EC
AC axial fans are compelling when the equipment already has a suitable line-voltage supply and needs robust fixed-speed airflow. They are not the answer to every control or efficiency requirement.
AC is often a practical starting point for fixed-speed ventilation in industrial cabinets, HVACR equipment, heat-exchanger assemblies, power supplies and other equipment with 110 V or 220 V available. The wiring can be straightforward, the product family covers compact and large frames, and the P-Q data can be matched to a defined system curve.
Compare DC or EC when the design needs wide-range speed control, low-voltage power, tight energy optimization, a battery-backed bus, or a control interface that the AC configuration does not provide. A comparison should use the same installed airflow and pressure target, not a free-air number from one technology against a loaded number from another. The system builder should also compare standby behavior, control hardware, EMC requirements, service access and total energy over the duty cycle.
The important outcome is a documented decision. If AC is chosen, record why the line voltage, frequency, fixed-speed behavior and installed pressure margin fit the equipment. If DC or EC is chosen, record the control and energy requirements that drove the decision. MEGA Tech can support the fan selection, airflow-path review, sample validation and later production step; the final system architecture remains with the equipment designer.
Engineer FAQ
Short answers for the design review before an AC enclosure fan is released.
Q: Can I select the largest CFM number in the catalogue? A: No. Use the P-Q curve at the correct voltage and frequency, then find the intersection with the installed system curve.
Q: Is 60 Hz always better than 50 Hz? A: No. The operating point, speed, noise, power and current change together. Use the data for the actual frequency and validate the installed sample.
Q: Should the fan go at the inlet or exhaust? A: Either can work. Choose the path that protects the heat source, limits bypass and manages dust and service access, then test the complete path.
Q: Does a larger frame guarantee a cooler cabinet? A: No. A larger fan may reduce face velocity and provide more airflow, but a poor cutout, recirculation path or restrictive filter can still dominate the result.
Q: What should I send for a custom AC fan recommendation? A: Send the fan envelope, voltage, frequency, heat load, target airflow, target static pressure, quantity, noise limit, filter or grille, mounting orientation, ambient conditions and application duty.
Q: Can MEGA Tech supply the complete electrical cabinet or HVAC unit? A: MEGA Tech is the custom cooling-fan manufacturer. The complete enclosure, controller, heat exchanger, coil and system integration remain with the equipment manufacturer or system integrator.
Questions for your next AC fan design review
Use this checklist to turn a catalogue selection into a testable engineering requirement.
- What is the heat load in watts in the worst operating mode, and which component has the tightest temperature limit?
- What inlet temperature and allowable temperature rise define the airflow target?
- What are the pressure losses of the production filter, grille, louvre, duct and cable path?
- Which 50 Hz or 60 Hz P-Q curve applies at the fan's actual terminal voltage?
- Is the chosen 110 V or 220 V variant compatible with the equipment supply, switching and protection?
- Does the mounting orientation, bearing choice, guard and cable route match the real installation?
- What happens after the filter loads, the ambient rises or the enclosure is serviced?
- What exact data should accompany a sample request: size, voltage, frequency, airflow, pressure, quantity, noise, environment and installation orientation?
