Vertical Farm Fan Placement

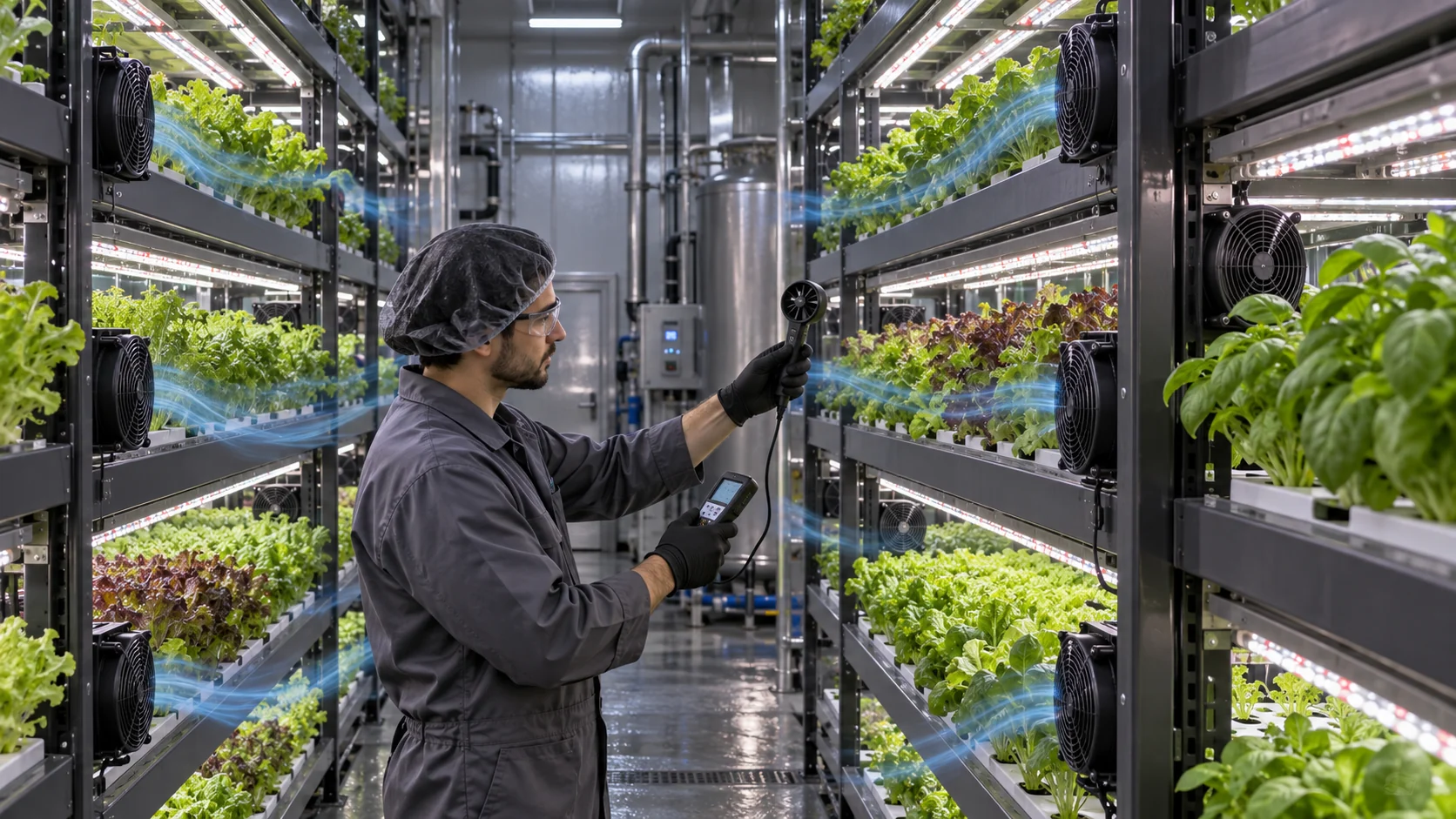

Engineer mapping airflow between vertical farm racks with sidewall and rack-level circulation fans

The Fan Position Can Matter More Than the Fan Rating

A vertical farm may have enough total air movement and still leave a rack end, lower tier or dense canopy under-mixed.

Vertical-farm cooling and circulation are often specified from room volume, air changes per hour or the free-air rating of a catalogue fan. Those numbers are useful starting points, but they do not tell the engineer whether air actually reaches the crop zone after passing through grilles, filters, rack frames, leaves, lights, curtains and return openings.

The installation geometry decides how much of the fan output becomes useful mixing. A sidewall fan may create a long cross-rack path, an aisle fan may improve the centre but short-circuit near the supply, and a rack-level fan may solve an end-of-row pocket while doing little for the room return path. The correct choice depends on the failure mode shown by measurements.

This guide compares three common layouts and gives a validation method that separates airflow uniformity from total heat and moisture removal. The numerical examples are engineering estimates for explaining the method, not crop recipes or guaranteed production results.

3 layoutssidewall, aisle and rack-level circulation have different duties

1 curvethe installed fan must be checked against the rack and grille resistance

1 mapacceptance should use the same crop-zone grid before and after the change

Start With the Failure Map, Not With the Fan Catalogue

Before choosing a frame size or motor, identify where temperature, humidity, air speed or condensation margin fails.

Build a layer-by-layer map with points near the supply, centre of the rack, far end, upper tier, middle tier, lower tier and return side. At each point record air speed, temperature and relative humidity. Add leaf temperature or surface temperature where condensation is a concern. Record the LED state, irrigation state, crop density, room HVAC state and fan command so that the test can be repeated.

A room sensor mounted near the air handler cannot represent the end of a dense rack. In a field evaluation of a multi-layer vertical-farming greenhouse, measured room air velocity varied across sensor locations, while fan outlet velocity was much higher than the velocity experienced in the crop area. That difference is exactly why fan outlet CFM should not be used as a proxy for crop-zone performance.

For an illustrative baseline, suppose six tiers show canopy velocities of 0.10, 0.12, 0.16, 0.19, 0.21 and 0.24 m/s at equivalent positions. The average is 0.17 m/s, but the slowest point is 41% below the average. A single average would hide the layer that needs attention. Use the minimum, maximum, spread and coefficient of variation together.

Minimum baseline information before changing fan placement
Observation	What to record	Why it changes the decision
End-of-rack stagnation	far-end velocity and RH	may need a local rack fan or a better return path
Upper-layer heat	tier temperature and light state	may need a vertical mixing path, not simply more CFM
Wet or cold surfaces	surface temperature and dew-point margin	may require controlled mixing and condensate protection
Strong near-side jet	near/far velocity ratio	can indicate short-circuiting or an unsuitable fan angle
High fan duty	command, current and installed pressure	shows whether energy is being spent on useful flow

Three Layouts and the Engineering Trade-Offs

No single fan arrangement is best for every rack geometry, canopy density or HVAC supply pattern.

Sidewall circulation fans can move air across several rack faces and are useful when the room has a clear longitudinal path. Their weakness is that the nearest racks may receive the strongest jet while the far end depends on the remaining pressure and return openings. The fan should be positioned and angled using a velocity map, not by symmetry alone.

Aisle fans are convenient for modular rooms because they can be added without changing every rack. They can also make a central aisle look well mixed while the space inside the rack remains stagnant. A grille, guard or filter at the inlet may add pressure loss, and the crop canopy can absorb momentum quickly. Measure inside the rack rather than only in the aisle.

Rack-level fans give the engineer a more local control point. They can target an end-of-row pocket, an upper tier or a heat source near the lamps. The trade-offs are more motors, more connectors, more maintenance points and a higher risk of local over-velocity. A modular rack fan can be a strong prototype tool, but the production design still needs a failure and cleaning strategy.

The practical answer is often a hybrid: the HVAC system establishes global temperature and moisture control, sidewall or aisle fans provide broad mixing, and a smaller number of rack-level fans correct the zones that the global pattern cannot reach. Each layer must have a defined purpose and a measurement that proves it.

Sidewall layout: longer throw and fewer units, but more sensitivity to far-end return conditions.
Aisle layout: easy retrofit and service access, but possible short-circuiting outside the rack.
Rack-level layout: precise correction, but more wiring, maintenance and local velocity risk.
Hybrid layout: usually the most flexible, but requires a clear control hierarchy.

Interactive: See How Placement Changes the Air Path

The schematic compares a broad sidewall path with rack-level correction and shows why a strong outlet jet is not the same as uniform canopy air.

Use this visual as a test-plan prompt rather than as a CFD result. First measure the baseline with the global supply operating. Then add the proposed circulation fan state and repeat the same points. Finally block or load the representative grille, filter or canopy resistance and repeat once more. The objective is to see whether the fan still improves the far-end crop zone at its installed duty.

If particles or smoke show a strong jet that leaves the rack immediately, check the return opening and the fan angle before increasing RPM. If a local pocket remains, test a small bracket change or diffuser before selecting a larger motor. A mechanical change that spends less pressure can be more effective than a higher-rated fan.

Animated schematic comparing sidewall airflow, aisle short-circuiting and rack-level correction in a vertical farm — Animated schematic: blue particles show the intended path; amber particles identify a bypass or weak-return condition. Qualitative model only.

Estimate Installed Pressure Before You Compare Fans

A fan selection should be made at the pressure created by the actual rack, guard, filter and return path.

List every resistance in the air path: inlet grille, protective guard, filter, short duct, diffuser, rack opening, canopy, bend and return. Some elements are small individually but become important when the fan is operating near the steep part of its P-Q curve. For a first estimate, express the system as a pressure loss that increases with flow, then validate it with a differential-pressure measurement or a calibrated airflow test.

Consider a rack circulation branch with a target of 650 m3/h. A guard contributes an estimated 18 Pa, a washable filter 28 Pa when clean, a short transition 22 Pa and the rack/canopy path 42 Pa. The initial installed point is approximately 650 m3/h at 110 Pa. If the service filter reaches 55 Pa, the same branch is now near 137 Pa before any change in canopy density. The selected fan must still provide useful mixing at that loaded condition.

Do not add an arbitrary pressure multiplier without understanding the source of the margin. A 1.3 multiplier may be reasonable for a preliminary comparison in some projects, but it cannot replace a measured filter curve, grille data or a system test. Record whether every value is measured, vendor-provided, estimated or intentionally conservative.

Use PWM or EC Control to Correct the Zone, Not to Hide the Problem

Variable speed is valuable only when the sensor location and control response are tied to the real crop-zone condition.

PWM or EC control can reduce fan speed during low load and increase it when temperature or humidity spread grows. It also allows a commissioning team to compare two layouts at the same electrical input. But a controller cannot fix an incorrect flow path. If the sensor sits beside the fan, the control loop may reduce speed while the far end remains stagnant. If the sensor sits in a delayed return location, the loop may hunt and create unnecessary oscillation.

Validate minimum stable duty, startup behavior, restart after a short power interruption, tachometer or FG feedback and locked-rotor or RD alarm behavior if available. In a humid room, verify that a fan can start after the intended idle period and that the connector and electronics remain protected during the cleaning cycle.

For an illustrative energy comparison, eight 24 V fans drawing 0.26 A each use 49.9 W. If a revised layout and control rule keep them at 0.17 A for 70% of a 16-hour light period and 0.26 A for the remaining 30%, the average fan input is about 39.0 W, or roughly 624 Wh per day. This is only an electrical estimate; HVAC and dehumidification effects must be measured separately.

PWM/ECcompare control range and minimum stable duty

FG/RDuse feedback to distinguish a command from real rotation

24 V example8 fans × 0.26 A = about 49.9 W at full input

Validate Humidity and Condensation at the Same Time

A placement that improves air speed but moves moisture onto a cold surface is not a complete solution.

Measure temperature and RH at the canopy, not only in the room return. Calculate dew point or another approved moisture margin from paired measurements. A cool metal rack, coil, supply panel or fan frame can have a different surface condition from the room sensor. Air movement may reduce a local pocket, but it does not remove latent load when the dehumidifier or HVAC system is undersized.

Use the planned cleaning and irrigation states. Water droplets, nutrient mist and cleaning spray can reach a fan even when the normal operating state is dry. Check drainage, cable exit, connector sealing, bearing construction, frame material and corrosion exposure. A high-RH specification without a defined condensation or spray condition is not enough for a production release.

At minimum, compare clean, wet-service and post-cleaning states. Record startup current, vibration, acoustic output, airflow and the sensor map after the fan has returned to the intended operating temperature. This links fan construction to the maintenance procedure instead of treating environmental protection as a catalogue checkbox.

An Anonymous Customer Example: From Aisle Jet to Balanced Rack Mixing

A European leafy-greens operator used a small-batch prototype to separate a global airflow problem from an end-of-rack mixing problem.

The customer had a six-tier rack room with central supply air and circulation fans mounted near the aisle. The room controller showed an acceptable average temperature and RH, but the far end of the upper and middle tiers repeatedly showed a wider temperature and humidity spread. Increasing the aisle-fan command improved the nearest crop zone and increased noise, while the far end changed only slightly.

MEGA Tech reviewed the rack spacing, guard, fan envelope, supply and return path, target voltage, control interface and cleaning conditions. Instead of immediately selecting a larger fan, the team produced two sample configurations: a side-mounted axial fan with a revised mounting angle and a compact higher-pressure module for the end-of-rack position. The test plan kept the same sensor grid and compared near/middle/far points at clean and representative canopy conditions.

The prototype review showed that the first aisle position was spending too much momentum in the open aisle. The revised bracket and local end-of-rack position delivered a more useful path through the crop zone at a lower command. The customer then checked temperature, RH, noise, current and maintenance access before freezing the production design. This is an engineering example, not a universal performance guarantee; the transferable lesson is to tune the path and the fan together.

For a real project, the customer should retain the raw measurements, sensor accuracy, crop state, fan command, supply pressure and acceptance limits. That record is more valuable than a single claim that the new fan is stronger.

What the customer should retain from a fan-placement validation
Evidence	Baseline	Revised sample
Crop-zone velocity	near/middle/far by tier	same points and same instrument
Temperature and RH	lights and irrigation state	same state plus loaded condition
Fan input	command, current and feedback	same voltage and control record
Acoustics and vibration	installed mount	installed mount after bracket change
Service condition	clean and wet cycle	startup and airflow after service cycle

Production Acceptance: Compare Uniformity, Energy and Failure States

The final fan layout should be accepted as a system, not as an isolated fan datasheet.

Use the same grid before and after the change. Report the mean, minimum, maximum, spread and coefficient of variation for crop-zone velocity, temperature and RH. If the farm has agronomic bands, document them separately from the mechanical fan limits. A fan supplier can validate the airflow and electrical behavior, but the farm's agronomy team owns crop-specific limits and the HVAC team owns the total heat and moisture balance.

Repeat the test at representative crop density because the canopy changes the resistance. Include a loaded filter or grille if one exists, a single fan stopped, a controller restart, a wet cleaning state and a high-light or high-heat state. Verify whether the remaining fans keep the system within the approved band or whether an alarm and controlled service response are required.

The acceptance report should identify all assumptions. If the pressure is estimated, say so. If the fan curve is measured at a supplier test point, explain how it relates to the installed mount. If the dynamic visual is qualitative, label it as such. Clear boundaries make the engineering result more credible and easier to transfer to another rack or crop configuration.

Measure at the canopy and return, not only at the fan outlet.
Repeat with representative crop density, lights and irrigation.
Record pressure, current, command, FG/RD feedback and noise.
Test loaded filter, wet service, restart and one-fan-off states.
Separate measured values, estimates, vendor data and agronomic limits.

Where MEGA Tech Fits In

We help vertical-farm teams develop a fan and mounting sample around the actual rack, pressure path, humidity exposure and control interface.

MEGA Tech can review custom axial fans, compact blowers and fan modules for sidewall circulation, aisle mixing, rack-level correction, LED heat paths, filtration and electronics cabinets. The engineering review can include P-Q behavior, fan angle, grille or filter loss, PWM or voltage control, FG/RD feedback, connector and cable exit, bearing selection, humidity and corrosion exposure, noise, vibration and service access.

For a first review, send the rack drawing, tier spacing, supply and return locations, crop or canopy condition, target velocity or uniformity metric, temperature/RH range, filter or grille, fan envelope, voltage, control interface, cleaning process and expected quantity. A photograph of the current hot or humid zone is also useful. We can start with a small sample, adjust parameters and compare the result before production.

We also support cost-competitive replacements for Sanyo Denki, SUNON, Delta, NMB or ebm-papst fans when the replacement is verified at the same installed pressure, electrical interface, environmental condition and crop-zone measurement points. The decision should be based on the complete operating envelope, not on a free-air headline number.

Engineering and inquiry linksRelated guide: humidity, VPD and condensation validation →Related guide: crop-zone airflow uniformity →Discuss a custom vertical-farm fan sample →

Engineer FAQ: Vertical-Farm Fan Placement

These questions connect layout decisions to installed pressure, crop-zone measurements and production risk.

Q: Is a sidewall fan better than a rack-level fan? A: Neither is universally better. Sidewall fans cover a broader path, while rack-level fans target a local failure. Choose from the measured velocity, temperature and humidity map.

Q: Can I select the fan from room CFM? A: Room CFM is only a starting point. Confirm the fan's flow at the guard, filter, rack and canopy resistance and then verify the crop-zone map.

Q: Why does a higher RPM not always improve the far end? A: The jet may short-circuit in the aisle, or the rack and return path may consume the added pressure before it reaches the far end.

Q: How many fans are needed per rack? A: There is no universal count. Rack length, tier spacing, canopy density, fan throw, pressure and return openings determine the answer.

Q: Should local fans run at full speed all the time? A: Usually not. Use a validated PWM or EC control range and check that lower duty still starts reliably and maintains the required uniformity.

Q: What should be checked before replacing a premium fan? A: Compare the installed P-Q point, voltage, control and feedback, acoustic behavior, bearing life, humidity exposure, mounting, service state and cost at the same evidence points.

Q: Can MEGA Tech make a small first batch? A: Yes. We can modify the fan or mounting parameters, build samples and support the airflow, humidity, noise and electrical validation before production.
